BESS System
MT-261K (261kWh)

MICCTech' s BESS（Battery Energy Storage System） features artificial intelligence peak shaving, ultra-safe LFP batteries and seamless backup power for increased energy savings and reliability. This intelligent, scalable storage system reduces costs by up to 30% while ensuring uninterrupted operation, all controlled through cloud monitoring. It's an energy storage system Ideal for commercial and industrial use！

Product Consultation

Battery Energy Storage System MT-261K (261kWh)

MT-261K Bettery Energy Storage systems(BESS) is an energy storage system that integrates efficiency, safety& reliability.  Its compact integrated structure is easy to install& maintain.

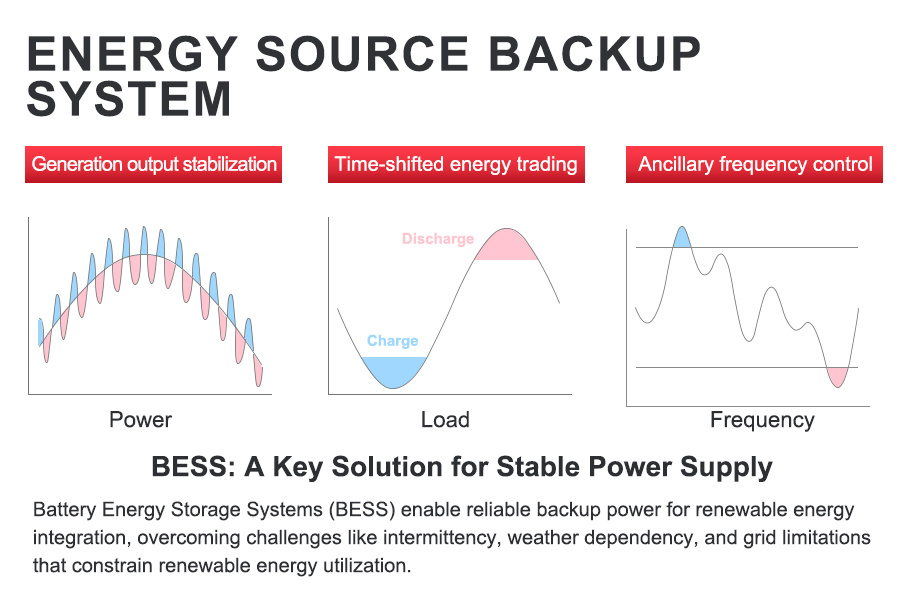

It' s designed to meet the needs of industrial & commercial energy storage, load shedding, peak shaving, microgrids,     backup power supplies and other scenarios.

This system maximizes energy efficiency while achieving greater   energy independence and reducing grid dependency  through integrated solar PV / Oil& Gas stationand battery sto-rage solutions.







Key Features







Powerful Function

All in one design, Easy maintenance. integrated LFP batteries, PCS, EMS, Liquid cooling system. With grid-connection,off-grid, and black-start functions









Efficient, Flexible

Single cabinet, 261kWh batteries, 125kWPCS, flexible in configuration.400v direct frid-connection, no transformer required







IP55 Environmental Adaptation

IP55 protection against wind, dust, rain, and sand; Single, independent cabinet to avoid circulation problems







High Operation Altitude

≤3000m(>2000 frequency reduction)











Multi Conmunication Mode

RS485, CAN, LAN

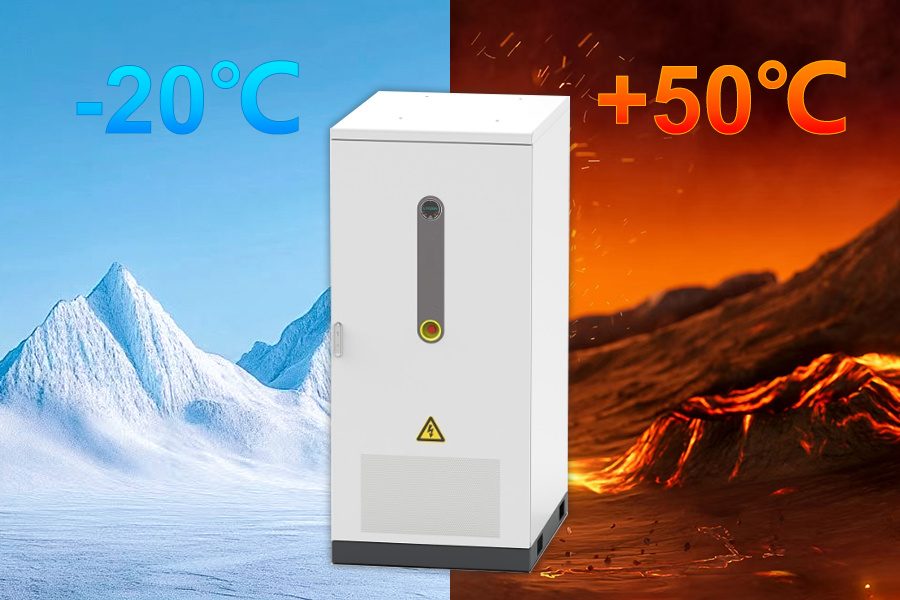

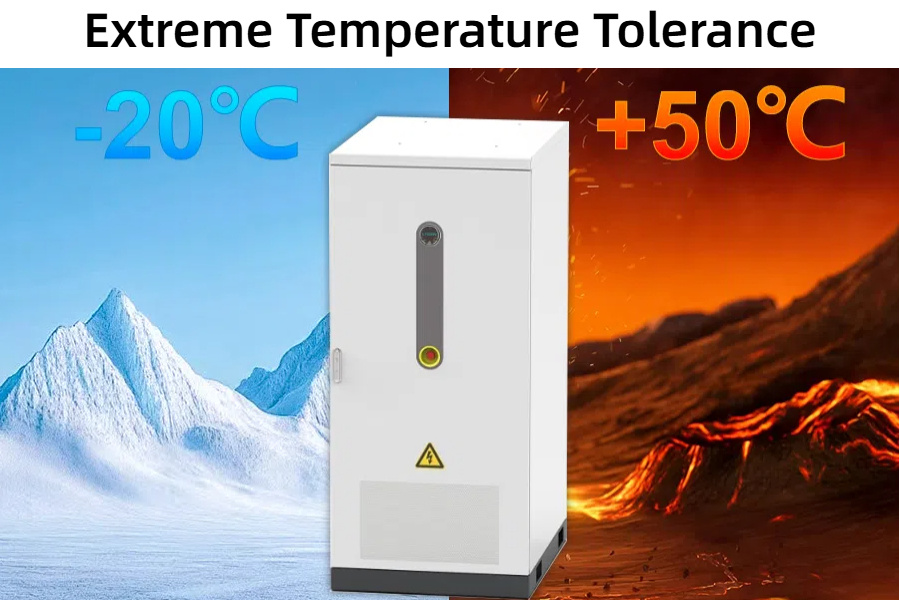

Wide Range Operation Temperature

-20°C~ +50°C





Hca78 (1).jpg
Hd35 (1).jpg
H96059 (1).jpg

Technical Specification

Battery Energy Storage System MT-261K (261kWh)

• Grid Voltage(AC)
400VAC
• Rated Power(AC)
125KW
• Rated Current(AC)
180A
• Rated Grid Frequency(AC)
50/60Hz
• THDi(AC)
<3%
• Module Parameters(DC)
LFP-166.4V-314Ah-52.2496kWh
• Capacity(DC)
261.25KWh
• Rated Voltage(DC)
832Vdc
• Operating Voltage Range(DC)
715~923Vdc
• Max.Current(DC)
200A
• System Life
8000Times LFP Batteries @25°C, 0.5CP, 95%DOD, ≥ 70%EOL
• Dimension W*D*H
880*1250*2200mm (Smaller footprint）
Datarsheet

Product Inquiry

Tell us your project requirements, our engineering team is ready to assist you. Your information will be 100% confidential.

Submit

Related Products

C&I ESS MT-215K (215KWH)

C&I ESS MT-215K (215KWH)

All in one design, integrated PCS,EMS. With grid-connection,off-grid, and black-start functions

MORE

Power Conversion System (MES600-100K/125K)

Power Conversion System (MES600-100K/125K)

√ DC voltage range 650V-950V
√ Energy storage system utilization efficiency >99%
√ Compatible for 99% EMS & BMS system
√ Support constant power, constant voltage, constant current control

MORE

Container ESS MTC-5M(5.0MWH-4h)

Container ESS MTC-5M(5.0MWH-4h)

# Multi-Functional Operation: Supports peak shaving, demand response, backup power supply, and remote firmware updates

# All-in-One Integrated Solution: Combines energy storage battery, PCS, power distribution, thermal management & fire protection, water-cooled cabinet, and monitoring communication systems for seamless one-stop delivery

MORE
