CROWN AC/DC/EC Fans

We are committed to developing of AC/DC/EC cooling fans and provide customers with a wide range of cooling solutions.

Product Consultation

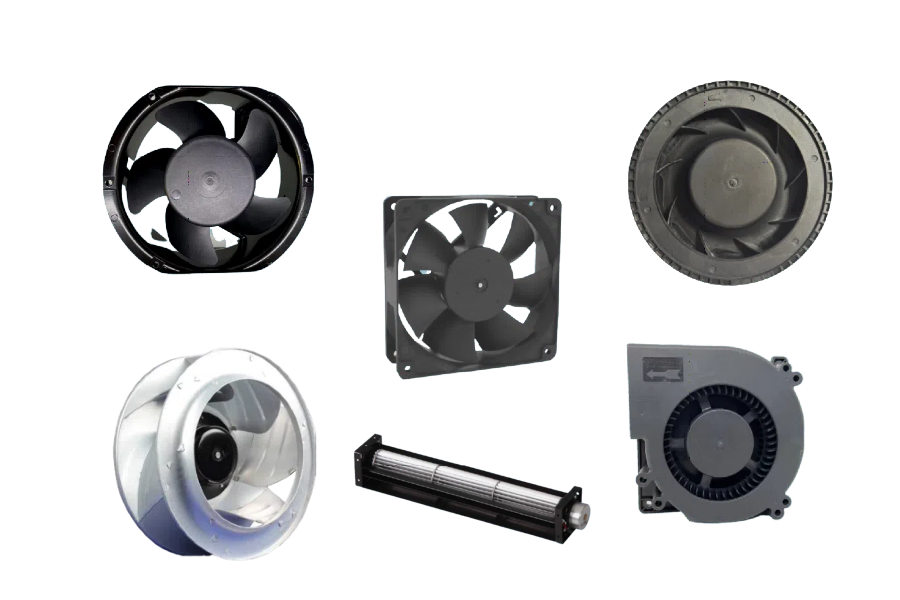

AC/DC/EC Fans

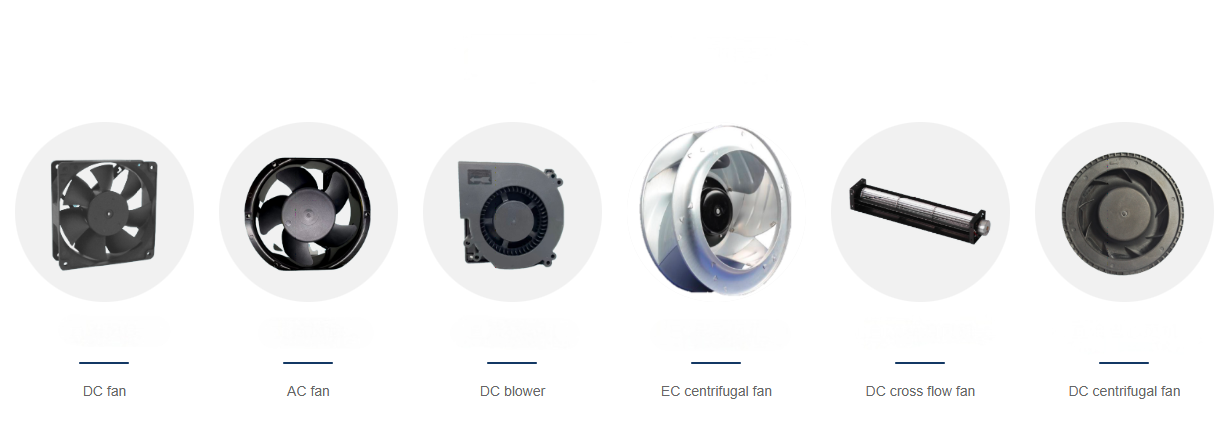

Products List

Technology and customization services are the most attractive services for us. If you have any other problems and product applications you are welcome to contact us

Key Features





An additional wire is offered to output an oscillating voltage output which can be usedby the system to infer the fan speed









An additional wire is offered to output a voltage signal when the fan is stationary . itis a useful functionality to identify non-operating fan.







The speed of the fan can be controlled via a pulse-width-modulated (PWM) signalcarried by a dedicated input wire.







The fans are designed to offer protection against dust and water. The digits behindthe letter lP indicate different levels of protection.







A NTC thermistor is connected to the fan and the fan speed varies with thetemperature measured by the thermistor.







The speed of the fan can be controlled via a voltage signal carried by a dedicatedinput wire.










未命名图片 (24)(1759212041964).png

Technical Specification

AC/DC/EC Fans

•Material
Frame,lmpeller:Plastics ,Aluminum etc
• Operation environment
Two ball bearing:-30'C~+70°C,humidity:35%~85%RHSleeve,FMB,FMB:-10°C~+50°C,humidity:35%~85%RH
• StroageTemperature
-40℃℃ +75℃℃.(humidity:35%~85%RH)
• Insulation Resistance
5mA MAX. at 500 VAC 60Hz one minute (between frame and lead conductor)/500VAC/60Hz
• Maximum speed (mechanical)
6000r/min
•Vibration Resistance Test
Applied 5.30Hz, 0.04 peak to peak amplitude, 30~500Hz, 2 G peak amplitude for five minutes to all three axis/5.3Hz,0.04
• Shock Test
Under the conditions of 60G, 22ms(1/2 sine), two times to all threeaxis/60G,22ms
• Noise
Expressed as the value at 1m from air inlet side
• Life Expectancy
Two ball bearing type…50,000hr~100.000hr
FMB bearingtype…30,000hr~60,000hr
Sleeve bearing type…20,000hr~30,000hr
• Protection level
MAX. IP68
Datarsheet
